類型：TFT豎屏

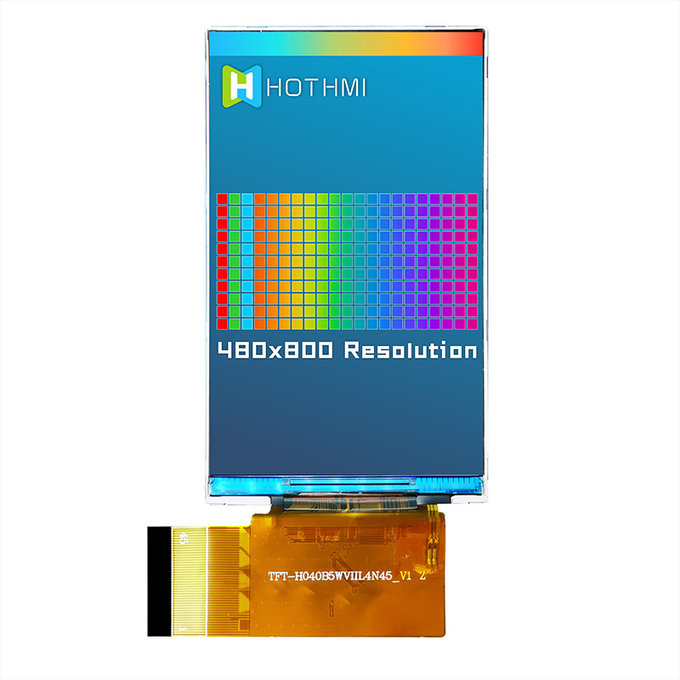

顯示像素：480x800
外形尺寸 ：57.14×96.85×2.10
VA尺寸：4.0
AA尺寸 ：4.0
有效尺寸mm：51.84x86.40
應用：儀器儀表
視角：全視角
背光/亮度：400cd/m2
引腳：45pin
接口方式：SPI

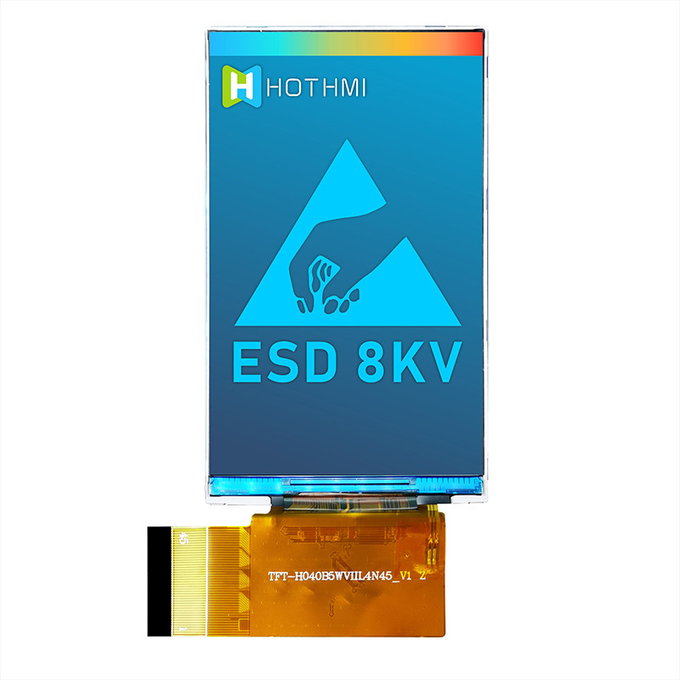

特殊說明：抗靜電ESD 8KV

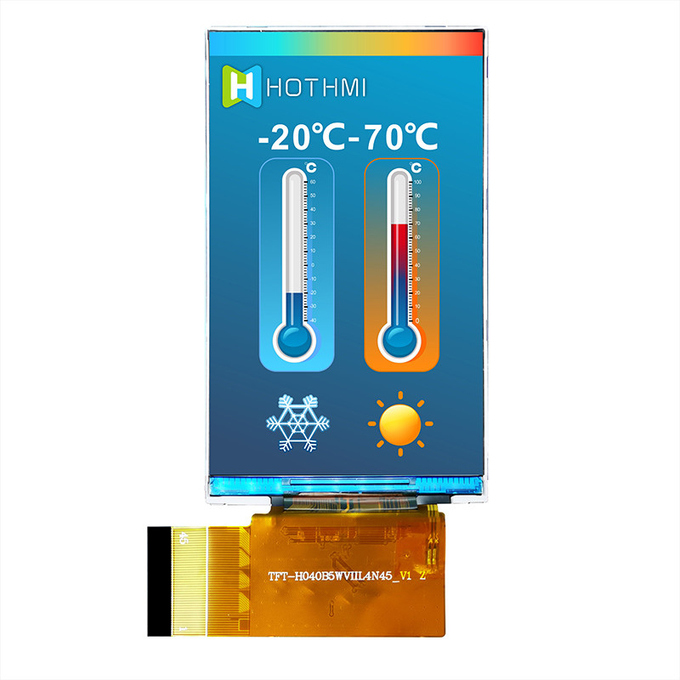

工作溫度：-20~70℃
供電電壓：2.8v

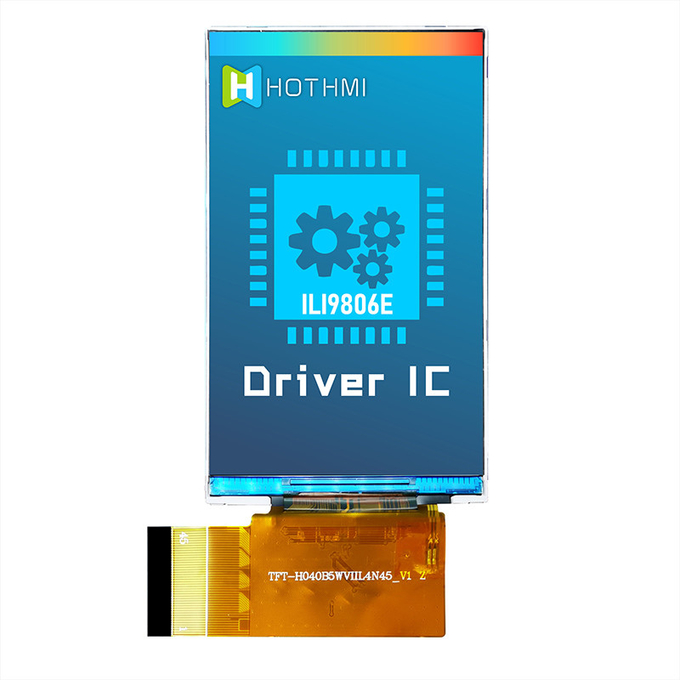

驅動芯片：ILI9806E

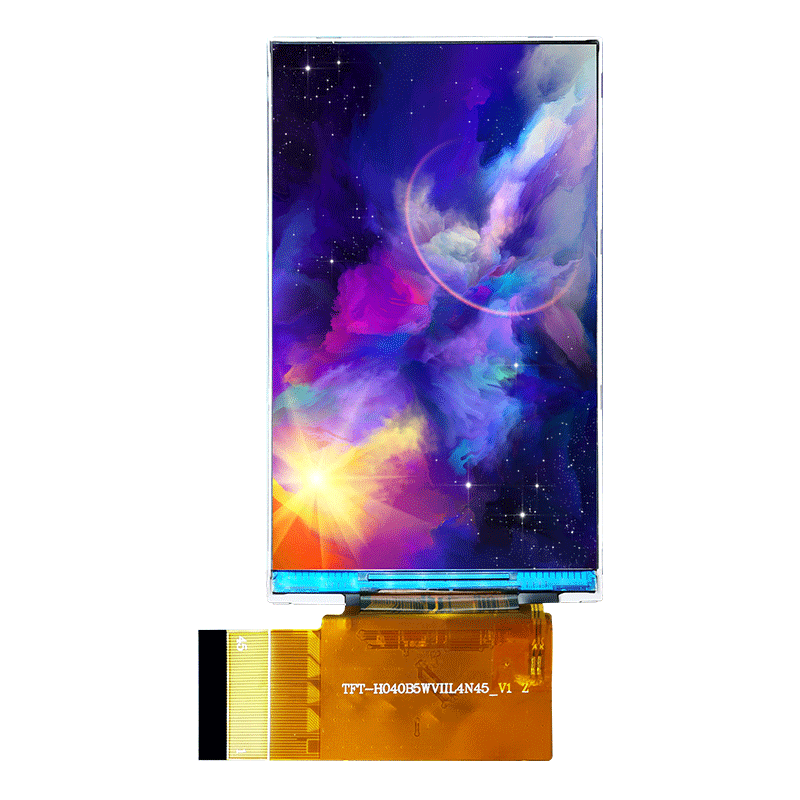

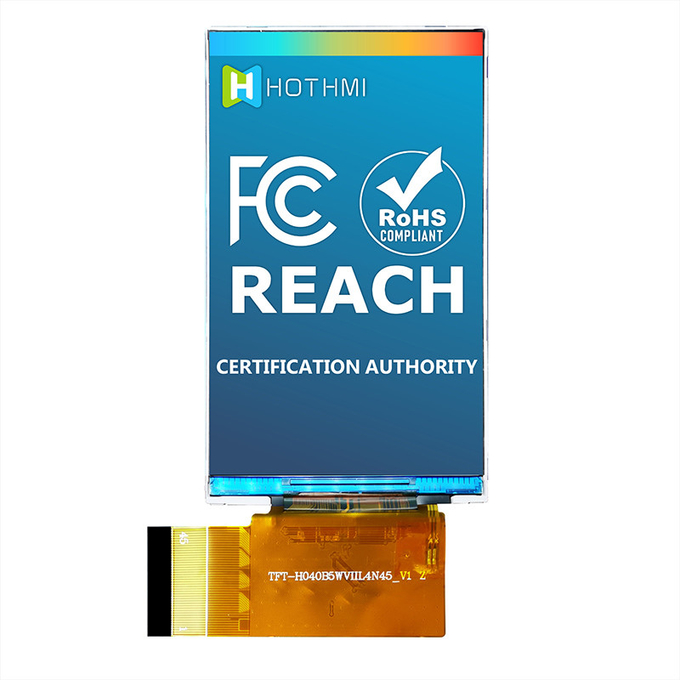

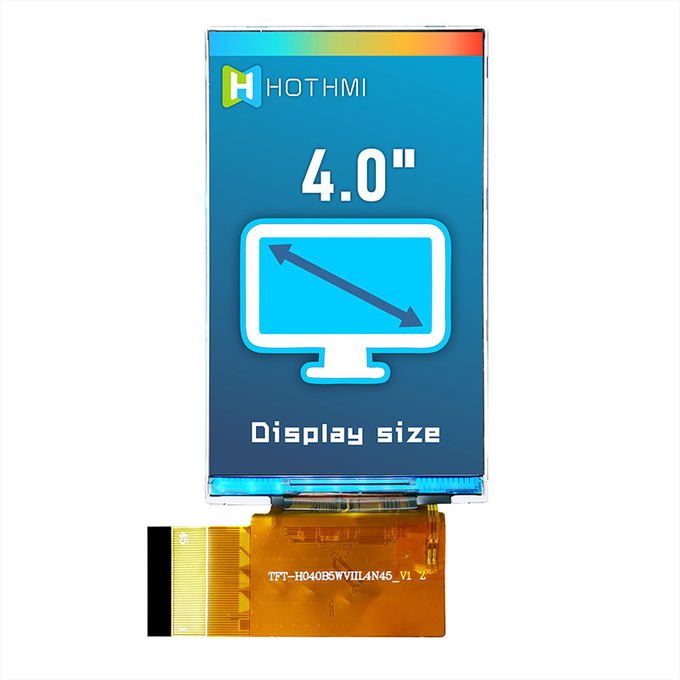

4.0寸TFT 4.0寸TFT彩屏 480*800分辨率 IPS全視角 SPI接口 TFT-H040B5WVIIL4N45
TFT-H040B5WVIIL4N45 | 4.0英寸IPS液晶顯示屏 | TFT液晶顯示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于監視器
您是否正在尋找高質量的 TFT LCD 顯示器來增強顯示器的顯示效果？ 看看 TFT-H040B5WVIIL4N45，這是一款由領先的 TFT LCD 顯示器制造商制造的 4.0" IPS LCD 顯示器。
該顯示器具有 480x800 分辨率，可提供清晰銳利的視覺效果，提升您的觀看體驗。 此外，TFT-H040B5WVIIL4N45 的工作溫度范圍為 -20℃ 至 70℃，可承受最極端的條件。
無論您是將顯示器用于工作還是娛樂，TFT-H040B5WVIIL4N45 都會提供無與倫比的觀看體驗。 相信這款 TFT LCD 顯示屏的質量和可靠性，立即升級您的顯示器。
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 51.84x86.40mm | mm | ||

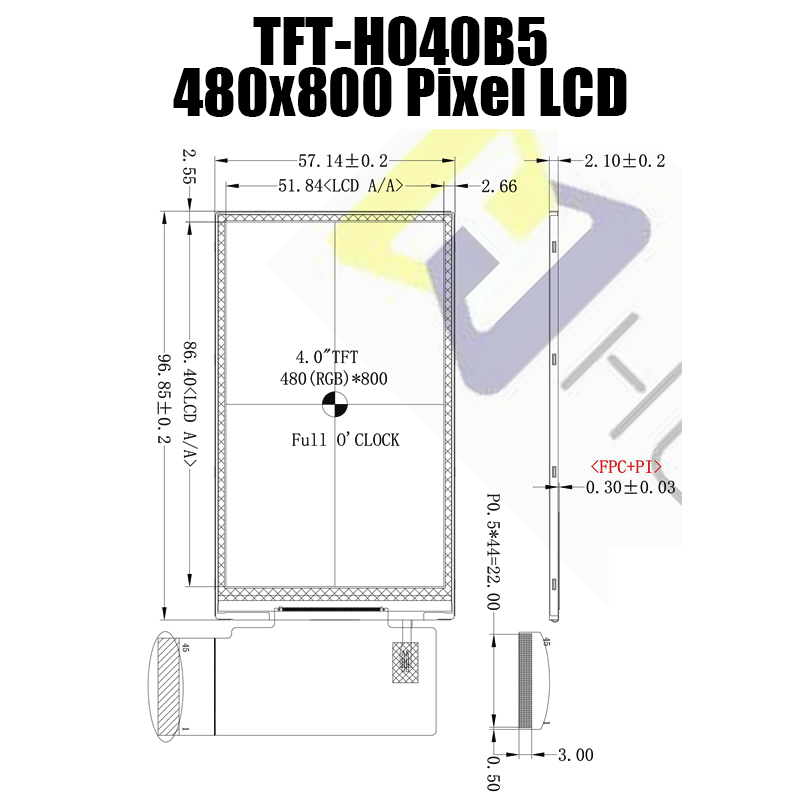

Outline Dimension | 57.14×96.85×2.10 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI 3L | - | ||
Driver IC | ILI9806E | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
TFT Pin Description
| Pin NO | Symbol | Description |
| 1 | LED K | LED Cathode |
| 2 | LED A | LED Anode |
| 3-6 | NC | No Connector |
| 7,8 | VCI | Analog Power(3.0 ~ 3.6 V) |
| 9 | IOVCC | Analog Power( 1.65 ~ 3.6 V) |
| 10 | RESET | Reset input |
| 11- 18 | DB23-DB16 | Data bus. |
| 19 | GND | Ground |
| 20-27 | DB15-DB8 | Data bus. |
| 28 | GND | Ground |
| 29-36 | DB7-DB0 | Data bus |
| 37 | GND | Ground |
| 38 | SCL | Serial clock input for SPI interface |
| 39 | CS | A chip select signal |
| 40 | SDI | Serial data input |
| 41 | SD0 | Serial data output |
| 42 | VSD | Vertical sync signal |
| 43 | HSD | Horizontal sync signal. |
| 44 | DEN | Data input enable. Display access is enabled when DE is “L”. |
| 45 | PCLK | Pixel clock input pin |
