類型：TFT帶板模塊
顯示像素：800x480

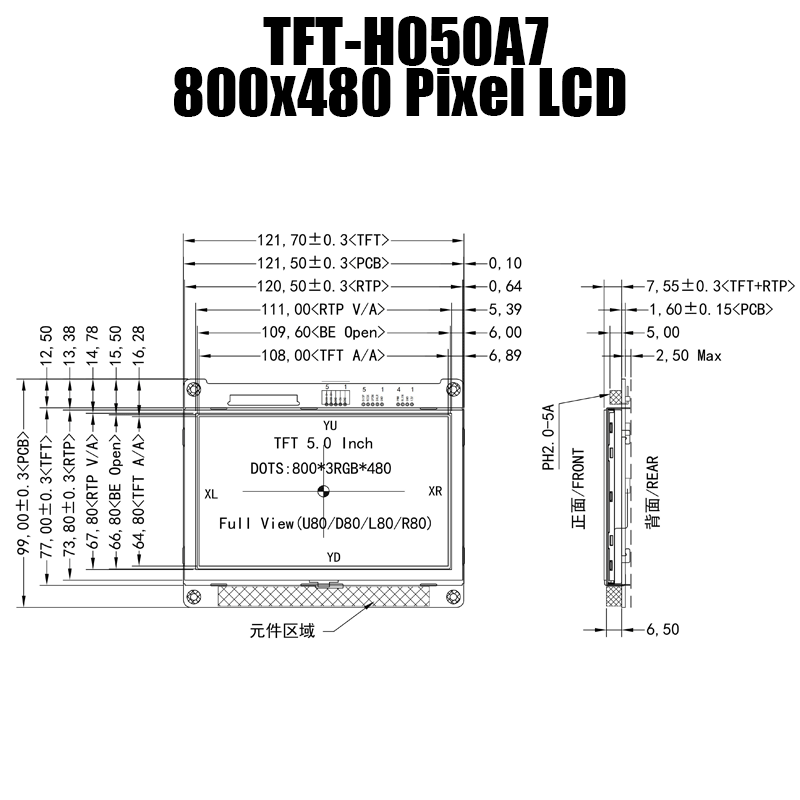

外形尺寸 ：121.7x99x7.55mm
VA尺寸：5.0
AA尺寸 ：5.0
有效尺寸mm：108x64.8mm
應用：車載，醫療，工控
視角：全視角

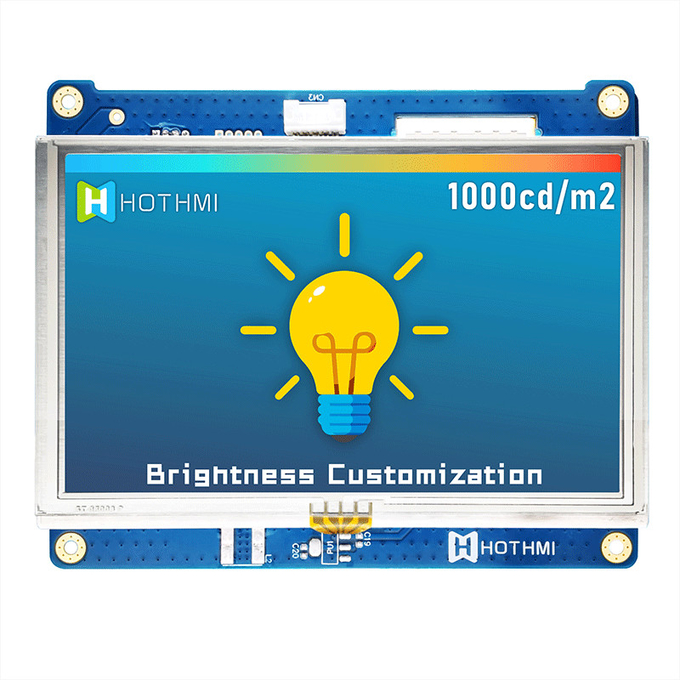

背光/亮度：1000cd/m2
引腳：20pin

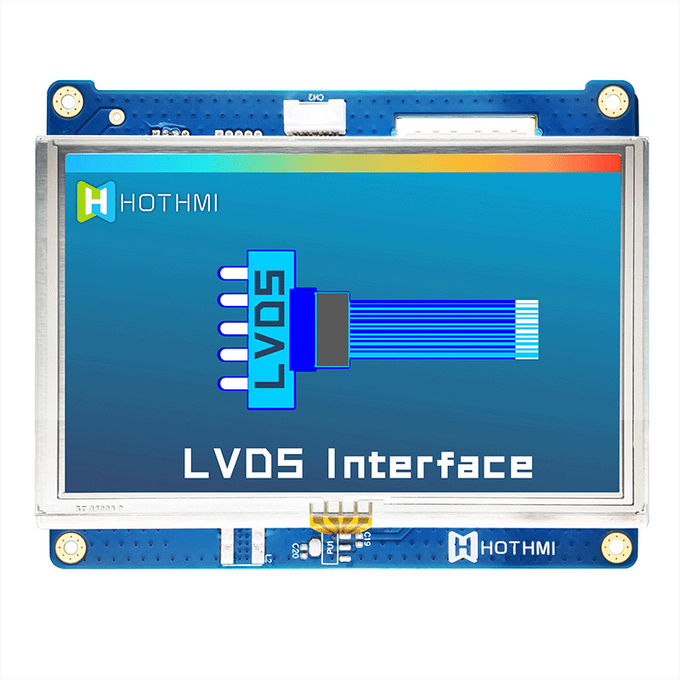

接口方式：LVDS

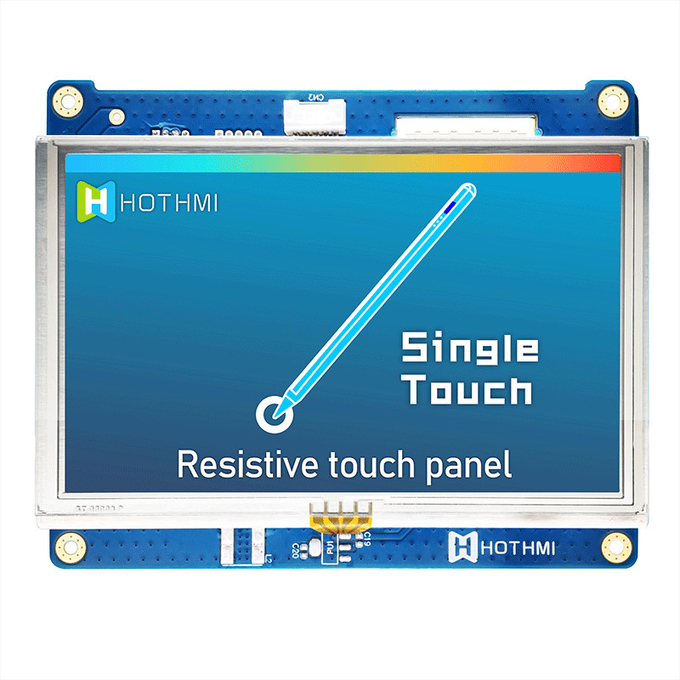

特殊說明：帶電阻觸控功能
工作溫度：-30~80℃
供電電壓：3.3V
驅動芯片：ST7262

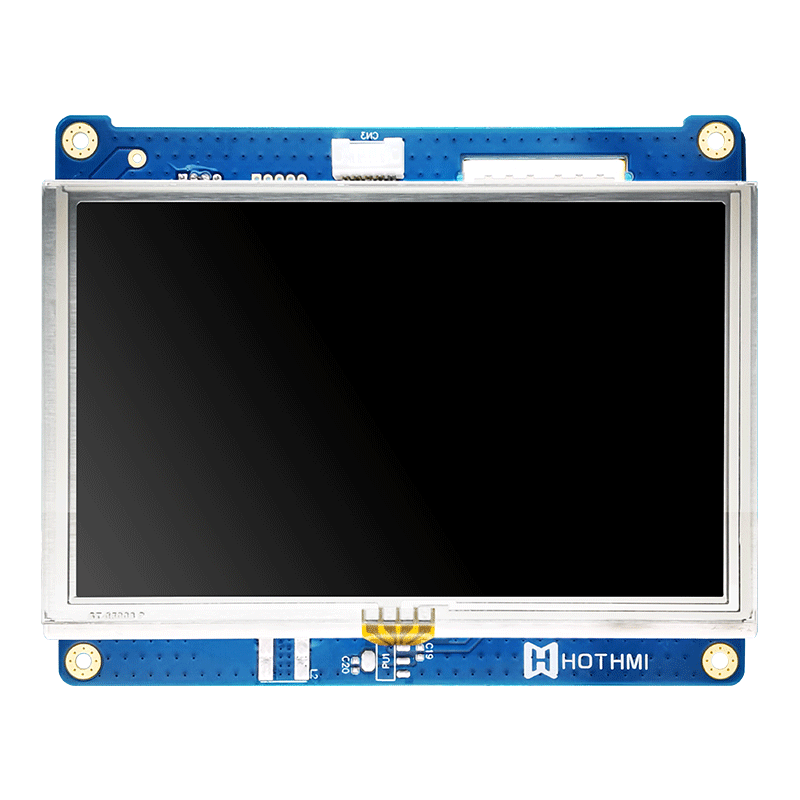

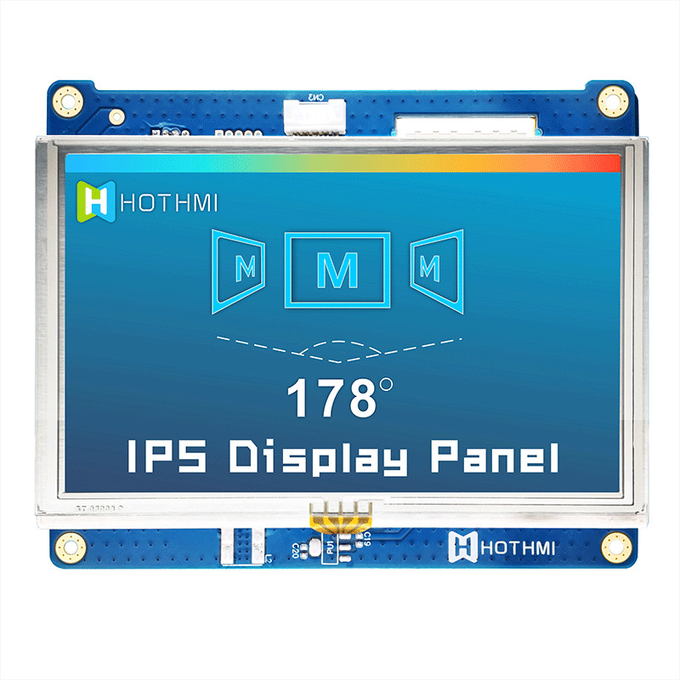

隆重推出 HTM-H050A7-LVDS-USBRTP，這是一款優質的 5.0 英寸 IPS LCD 顯示屏，擁有令人印象深刻的 800x480 像素分辨率。 憑借其電阻式觸摸屏，該顯示器反應靈敏且易于使用，使其成為廣泛應用的絕佳選擇。
HTM-H050A7-LVDS-USBRTP 的突出特點之一是其寬溫度范圍，這使其非常適合在其他顯示器可能出現故障的惡劣環境中使用。 憑借其先進的技術，這款顯示器可以承受極端溫度，即使在最惡劣的條件下也能確保可靠的性能。
無論您是在尋找用于醫療設備、工業設備或任何其他性能和可靠性至關重要的應用的顯示器，HTM-H050A7-LVDS-USBRTP 都是完美的選擇。 憑借其高品質的結構和先進的功能，這款顯示器一定能滿足您的所有需求并超越您的期望。
除了令人印象深刻的功能外，HTM-H050A7-LVDS-USBRTP 還易于安裝和使用。 該顯示器配備了一個用戶友好的界面和一系列連接選項，包括 LVDS 和 USB。 這意味著您可以輕松地將顯示器連接到各種設備并立即開始使用。
HTM-H050A7-LVDS-USBRTP 還具有高度通用性，使其成為廣泛應用的絕佳選擇。 無論您是在醫療設備、工業設備還是任何其他類型的設備中使用它，這款顯示器都能提供卓越的性能和可靠性。
憑借其先進的技術、高質量的結構和令人印象深刻的功能，HTM-H050A7-LVDS-USBRTP 是任何尋求高性能顯示器的人的理想選擇。 那為什么還要等？ 立即訂購，親身體驗與眾不同！
General information
| Item | Specification | Unit | |
| Outline Dimension | 121.7x99x7.55mm | mm | |
| Display area | 108x64.8mm | mm | |
| Number of Pixel | 800(H) x 480(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | ST7262 | W |
| B/L System | - | W | |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
HTM-H050A7-LVDS-USBRTP_V0-0(1).pdf
