The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

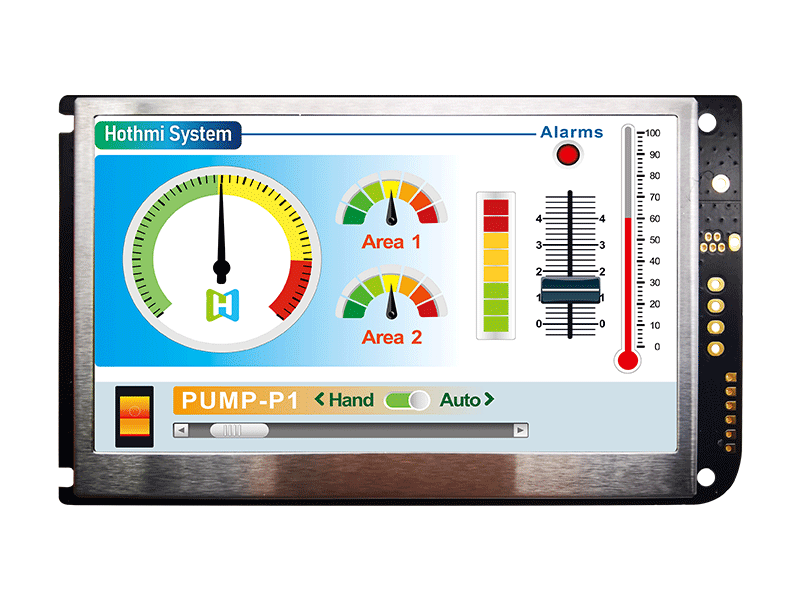

| 4.3 Inch UART Resistive Touch Screen TFT LCD 800x480 Display WITH LCD CONTROLLER BOARD HTM-H043A2-UART | TFT Module | 800x480 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 10pin | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 4.3 Inch UART Resistive Touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART-RTP-480x272 | TFT Module | 480x272 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 10pin | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 4.3 Inch UART TFT MODULE TFT LCD 800x480 Display PANEL WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART | TFT Module | 800x480 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 10pin | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 4.3 Inch UART TFT LCD 480×272 Display TFT MODULE PANEL WITH LCD CONTROLLER BOARD HTM-H043A2-A5-UART | TFT帶板模塊 | 480x272 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 10pin | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 8.0 inch |resistance touch screen | 800 * 600 resolution configuration screen | EzUIH08 | TFT LCM | 800x600 |
|
199.4x148.8x10.1 | 8.0 | 8.0 | 163.0x121.5 | 6H | 300cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

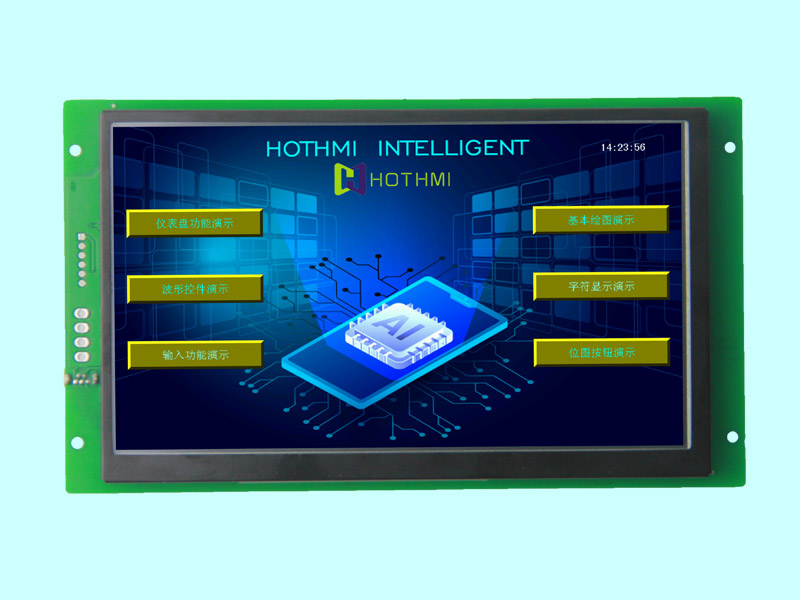

| 7 inch |resistance touch screen | 800 * 480 resolution configuration screen | EzUIH070 | TFT LCM | 800x480 |
|
187×108×15.0 | 7.0 | 7.0 | 154.08×85.92 | 300cd/m2 | USB+RS232 | UART/RS232 | -20~70℃ | 5.0V | ||||
| 7 inch TFT 1024*600 Intelligent serial screen/resistive touch/configuration screen EzUIH070D | TFT LCM | 1024x600 |
|
187.0x108.0x15.0 | 7.0 | 7.0 | 154.08x85.92 | Full view | 800cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

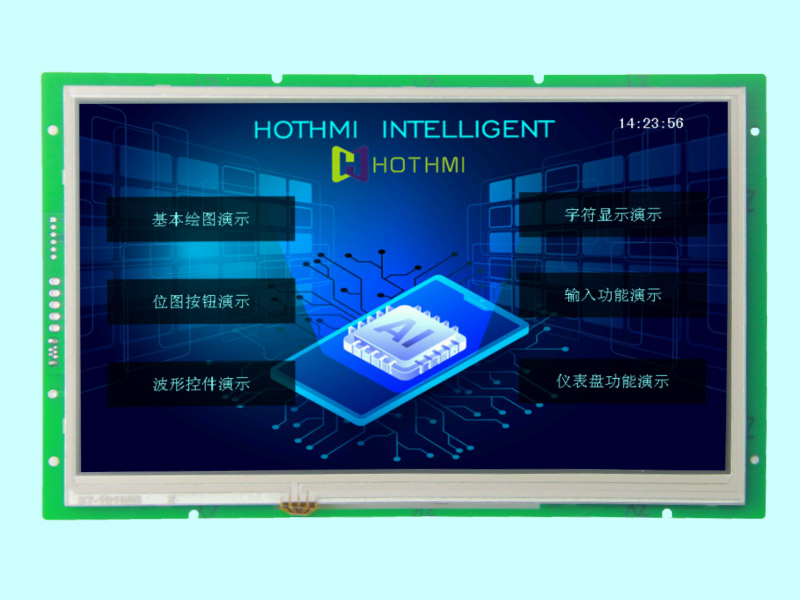

| 10.1 inch TFT 1024*600 Intelligent serial screen/resistive touch/configuration screen EzUIH101 | TFT Module | 1024x600 |
|
251.0x153.0x10.0 | 10.1 | 10.1 | 222.72x125.28 | 6H | 300cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 5.0 inch TFT 800*480 Intelligent serial screen/resistive touch/configuration screen EzUIH050D | TFT LCM | 800x480 |
|
136.0x85.0x12.0 | 5.0 | 5.0 | 108.0x64.8 | USB+RS232 | UART/RS232 | -20~70℃ | 5.0V | |||||
| 4.3inch serial port screen | 480 * 272 resolution | resistance touch | configuration screen |EzUIH043 | TFT Module | 480x272 |
|
117.5×73.2×10.0 | 4.3 | 4.3 | 95.04×53.856 | 6H | 300cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0v |
