With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.0 Inch TFT LCD With PCAP | 800x1280 Resolution ILI9881C Controller TFT-H070B13HDIIL4C40 | TFT | 800x1280 |
|
108.65x167.85x4.76 | 7.0 | 7.0 | 94.2x150.72 | IPS | 450cd/m2 | 40 PIN | MIPI | Anti-static ESD 8KV | -20~60℃ | +3.3V | ILI9881C | |
| 3 Inch TFT LCD Display With Capacitive Touchscreen | RGB Interface ST7701 Controller TFT-H030A10FWIST3C40 | TFT | 480x854 |
|
43.5x75.4x3.8 | 3.0 | 3.0 | 36.72x65.28 | IPS | 300cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701 | |
| 2.8 Inch Capacitive Touch TFT LCD Display SPI 240x320 with ST7789 Driver IC TFT-H028A16QVIST4C10 | TFT | 240x320 |
|
50.0x69.2x3.95 | 2.8 | 2.8 | 43.2x57.60 | IPS | 400cd/m2 | 10 PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789 | |
| 8.0 inch 1024x600 TFT LCD Display with RGB Interface TFT-H080A12WSIHX6N50 | TFT | 1024x600 |
|
192.80x116.90x6.55 | 8.0 | 8.0 | 176.64x99.36 | IPS | 600cd/m2 | 50pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 18.5 inch 1920x1080 TFT Display with Capacitive Touch -IPS AG TFT LCD with LVDS Interface TFT-H185E01FHIYZ8C30 | TFT | 1920x1080 |
|
450.0x272.0x5.0 | 18.5 | 18.5 | 408.96x230.04 | IPS | 850cd/m2 | 30PIN | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 7.0 inch TFT Display/1024x600 capacitive LCD/RGB Interface/JD9165 Controller TFT-H070B26WSIJDKC40 | TFT | 1024x600 |
|
164.9x100.0x5.4 | 7.0 | 7.0 | 154.21x85.92 | 154.21x85.92 | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | JD9165 | |||

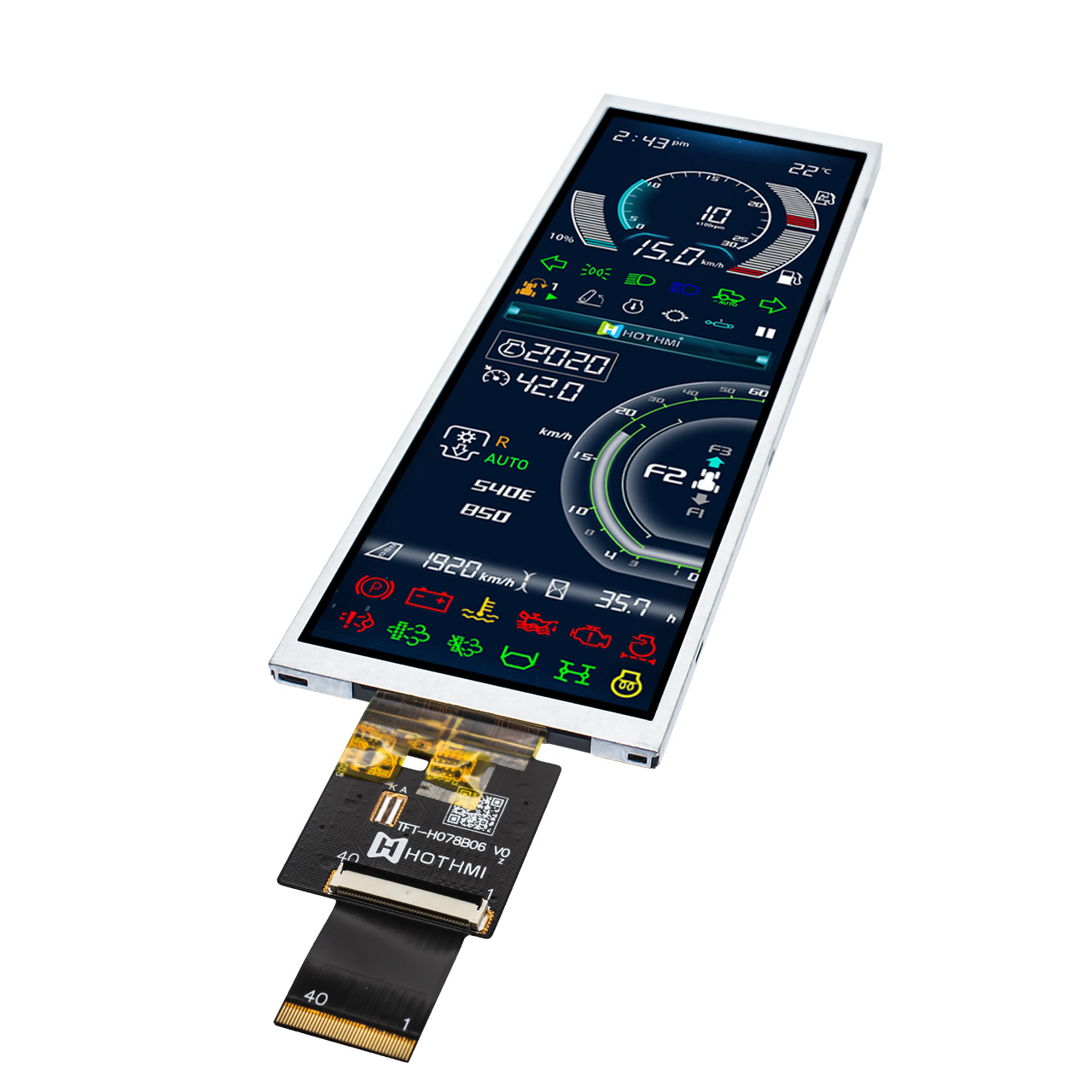

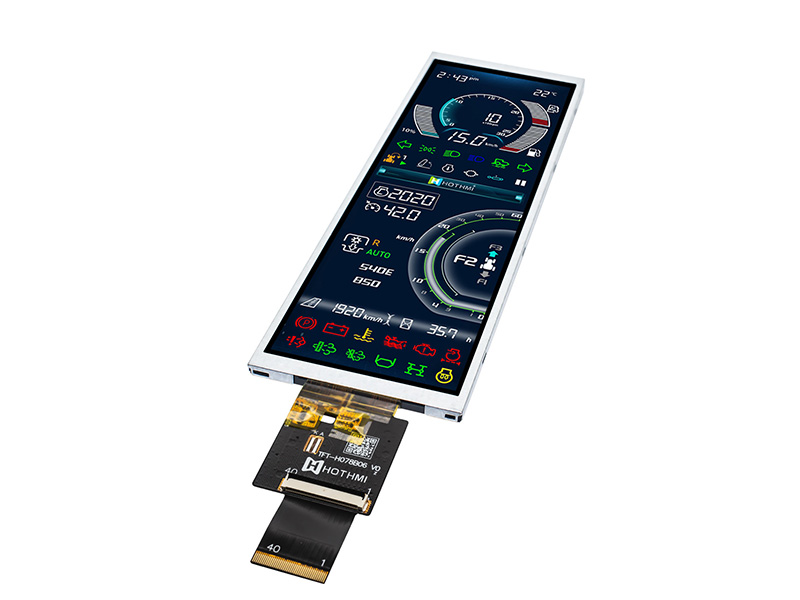

| 7.8 inch sunlight readable TFT LCD Display with ST7703 Controller TFT-H078B06ZAISTTN40 | TFT | 400x1280 |
|
67.8x205.78x4.7 | 7.8 | 7.8 | 59.4x190.08 | IPS | 1700cd/m2 | 1700cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703 | |
| 7.8” TFT LCD Display-400x1280 Capacitive Touch Screen with MIPI DSI Interface TFT-H078B06ZAISTTC40 | TFT | 59.4x190.08 |
|
67.8x205.78x6.4 | 7.8 | 7.8 | 59.4x190.08 | IPS | 1500cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703 | |
| 7.8 inch TFT Display | 1024x600 MIPI DSI Screen | ST7703 TFT-H078A1ZAIST7N40 | TFT | ST7703 |
|
65.2x201.18x3.3 | 7.8 | 7.8 | 59.4x190.08 | 59.4x190.08 | 40pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7703 | ||

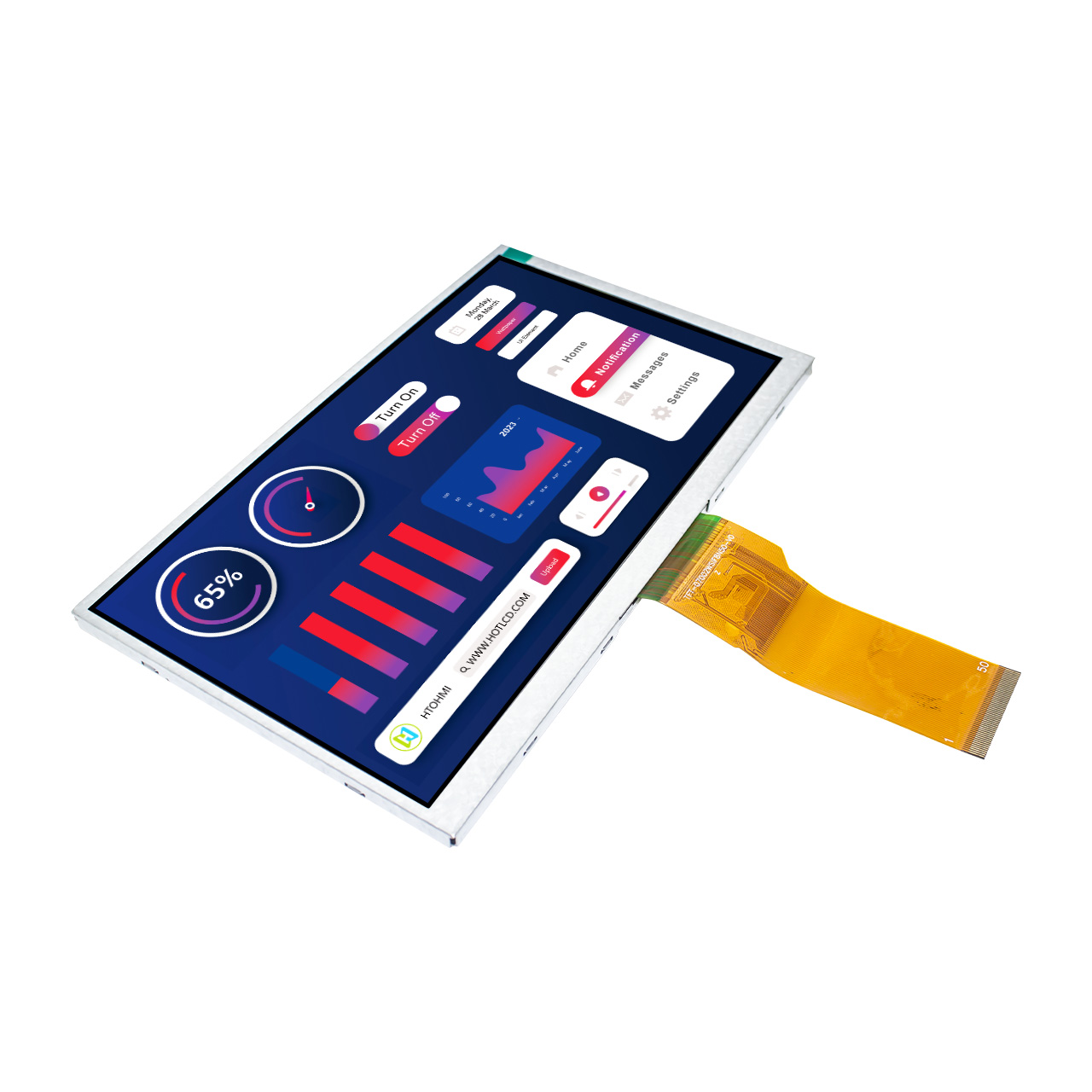

| 7.0 inch TFT Display Module | 1024x600 RGB IPS LCD Screen | EK79001 TFT-H070A2WSIFT8N50 | TFT Display | 1024x600 |
|
164.9x100.0x5.5 | 7.0 | 7.0 | 154.21x85.92 | 154.21x85.92 | 50pin | RGB | IPS | 800cd/m2 | RGB | EK79001+EK73215 |
