Product type：TFT
Show contents：280x1424
Outline size(mm) ：182.47x38.2x3.45
Size of View Window(mm)：7.0
Display size(mm) ：7.0
Effective size(mm)：170.88x33.6
Product application：coffee machine, small household appliances
Visual angle：IPS
Backlight type or brightness：650cd/m2
Connection PIN Number：FPC-40 pin
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：+3.3 V
Driver chip model：ST7703

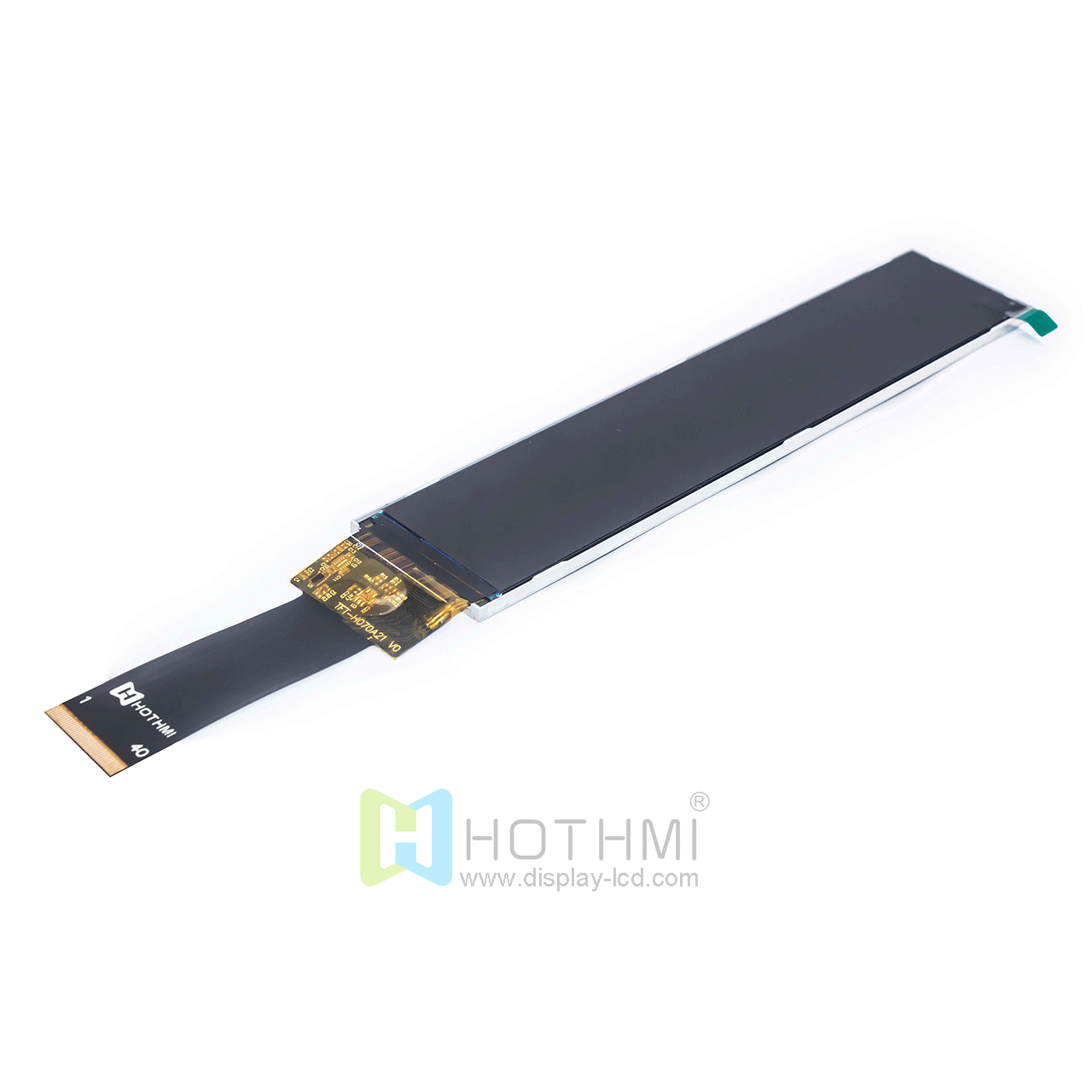

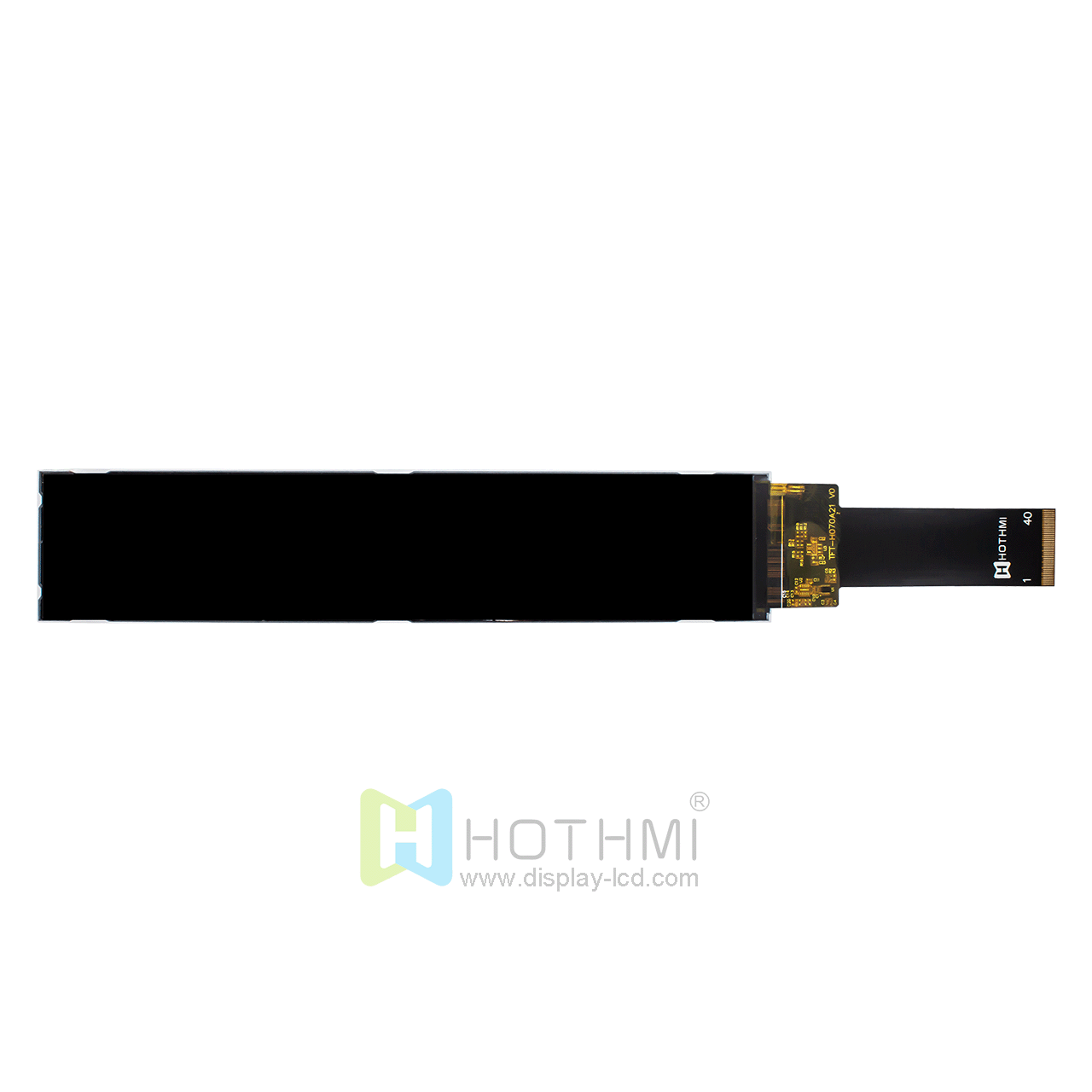

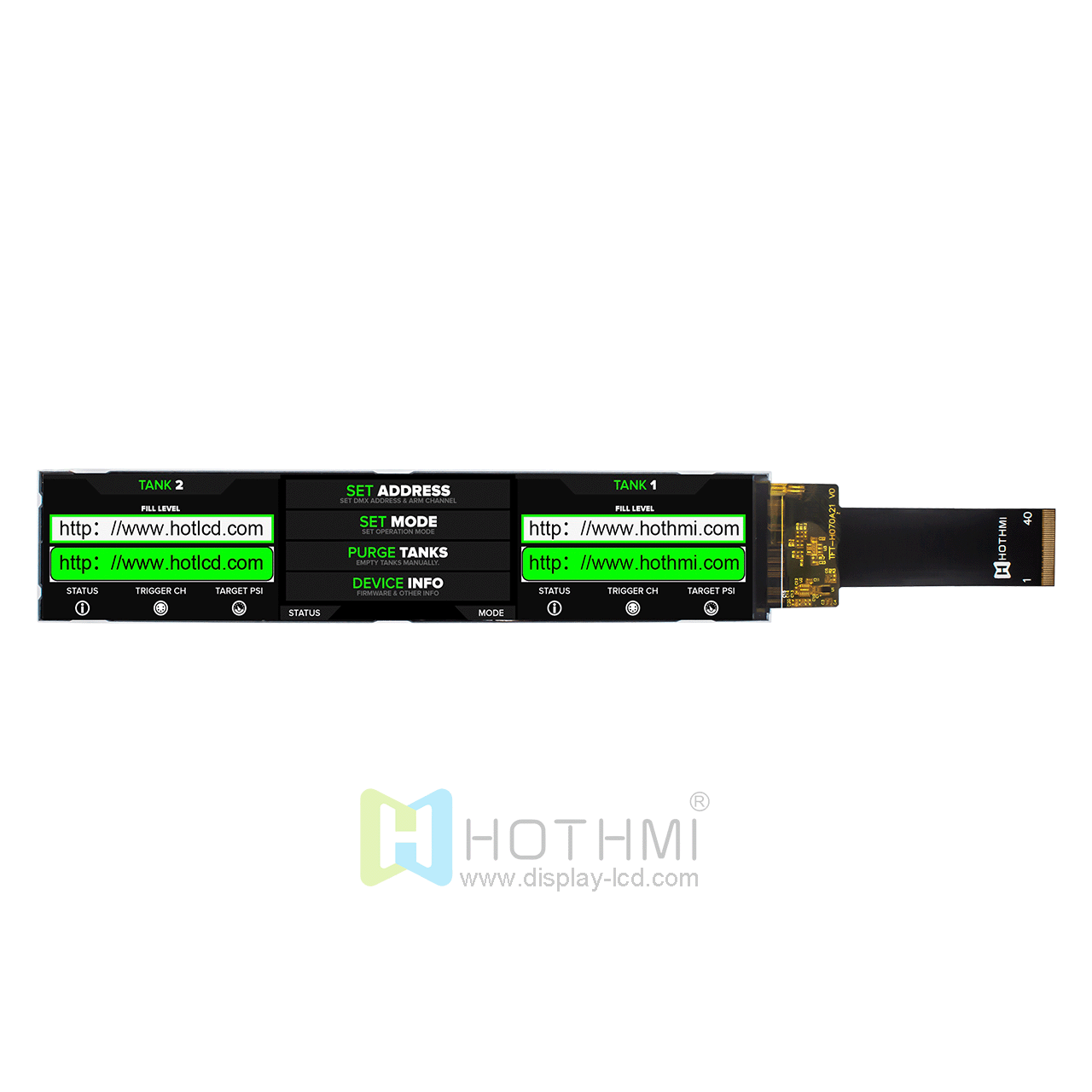

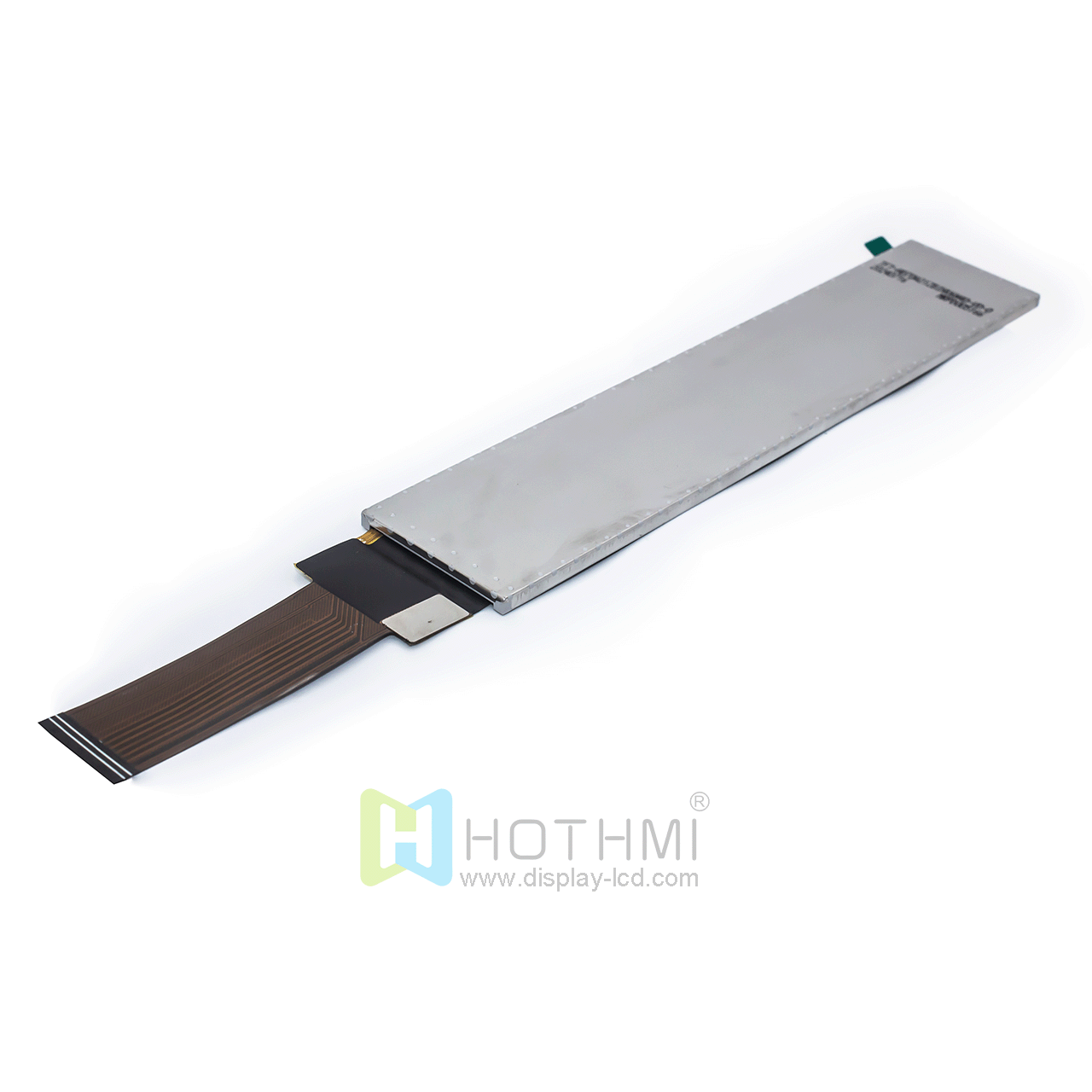

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller The TFT-H070A21ZBINV6N40 is a 7.0 inch IPS TFT display with a resolution of 280x1424 pixels. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It also has a brightness of up to 650cd/m2, making it suitable for use in both indoor and outdoor environments.
The TFT-H070A21ZBINV6N40 is equipped with optional resistive or capacitive touch screen capabilities, allowing users to interact with the display through touch. In addition, it is equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.
Overall, the 7.0-inch IPS TFT LCD display/280x1424 resolution color display/with ST7703 controller is a versatile, high-performance display suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.
