Product type：Graphic LCD Module
Show contents：256x128
Outline size(mm) ：147.0x116.0x14.6
Size of View Window(mm)：114.0x64.0
Display size(mm) ：127.0x70.0
Point spacing(mm)：0.47x0.47
Product application：Instruments
Visual angle：6H
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：NT7086/RA0086

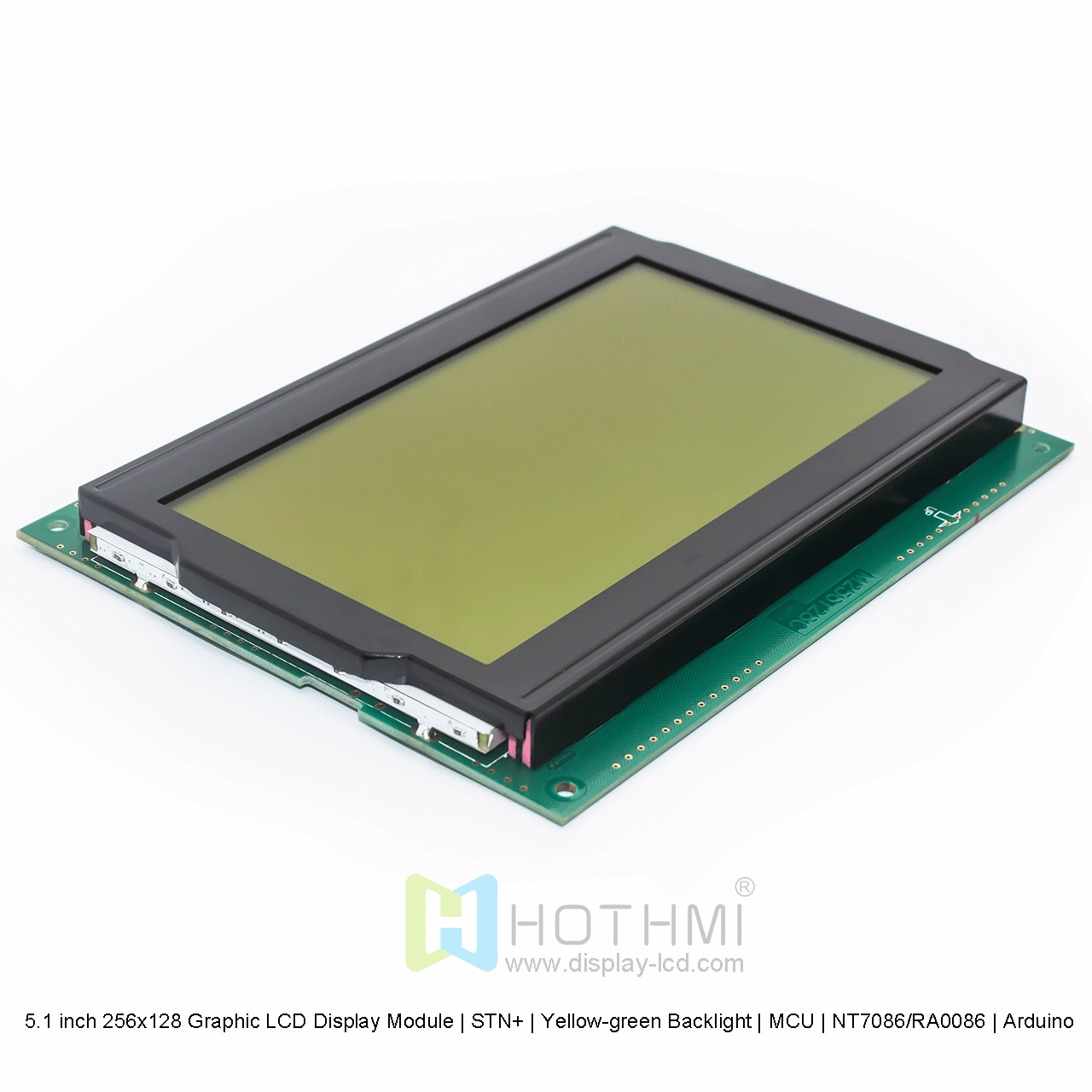

HOT Display 256x128 Graphic LCD Module - High Brightness and Clearness, Excellent Experience
Excellent Display Performance
The HOT Display 256x128 Graphic LCD Module uses a yellow-green background with dark gray pixels to ensure a clear and eye-catching picture and provide an excellent visual experience. Its semi-transparent polarizer design allows it to effectively reflect external light in a strong light environment, so that the displayed content is still clearly visible; in a low-light environment, the backlighting enhances the contrast of the picture, allowing users to easily read the displayed content, providing excellent visibility and vivid color performance regardless of the lighting conditions.
High-brightness backlight for enhanced readability
The LCD display has a built-in high-brightness backlight that provides high contrast, ensuring that all graphics and text are clearly readable. Even in low-light environments, the backlight can still effectively improve visibility, making the information presentation more intuitive and clear.
Strong compatibility and easy integration
The module has a built-in negative voltage circuit and is compatible with Arduino and C8051, allowing it to be seamlessly integrated into various electronic systems and is suitable for multiple application scenarios such as industrial control, smart meters, medical equipment, consumer electronics, etc.
Rugged and durable, adaptable to harsh environments
The HTM256128C adopts a rugged design and can operate stably in an ambient temperature range of -20°C to 70°C, meeting stringent industrial requirements. Its 6:00 viewing angle design provides an ideal viewing experience, and its 5V operating voltage ensures efficient and stable operation of the device. It also complies with RoHS environmental certification, ensuring performance while meeting international environmental standards.
