Product type：Character LCD Module
Show contents：20x4
Outline size(mm) ：146X62.5X12.6
Size of View Window(mm)：123X43
Display size(mm) ：118.84x38.47
Point spacing(mm)：0.92x1.1
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

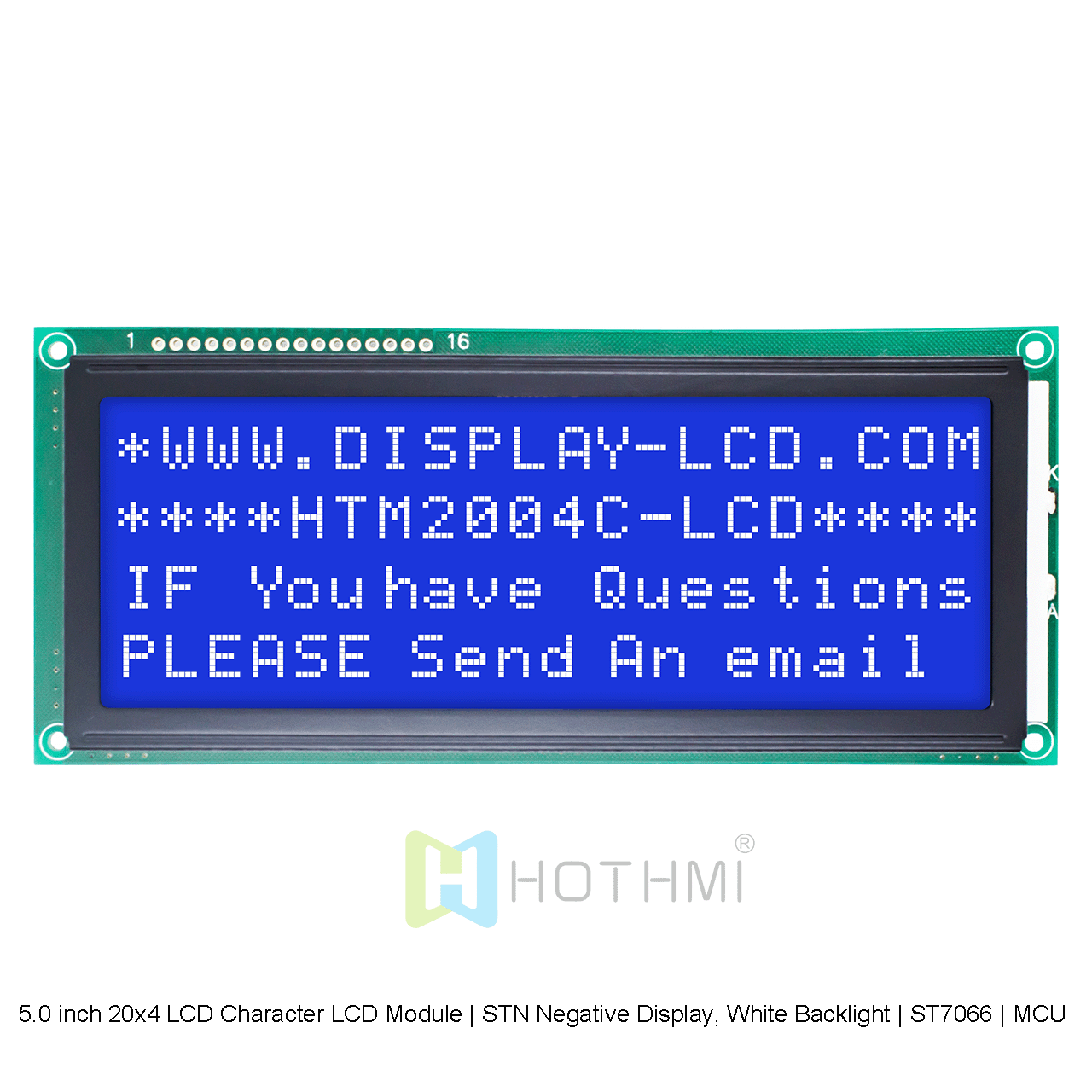

5.0 inch 20x4 LCD Character LCD Module with White Backlight for Arduino, can display up to 80 characters, can display two lines, each line displays 20 dark images on a blue background, the display effect is white characters on a blue background.
This translucent LCD display uses LED backlight for excellent visibility in low light and ambient conditions. The operating temperature range is wide, ranging from -20°C to 70°C.
The best viewing time for this Arduino compatible LCD character display is 6:00. The screen runs on a 5V power supply and is RoHS compliant.
